CRL EH66 Chrome Frameless Triple Mirror Hinge

CRL EH66 Chrome Frameless Triple Mirror Hinge

C.R. Laurence EH66 Chrome Frameless Triple Mirror Hinge offers a sleek and efficient solution for mounting frameless triple mirrors. Designed for use with 1/4″ to 5/16″ (6 to 8 mm) glass, this compact hinge features plastic-tipped set screws located on the back, ensuring a secure hold on your mirrors while maintaining a polished appearance. Each package contains four hinges, providing everything needed for a complete triple frame installation. For optimal performance, CRL recommends applying Cat. No. 2MT Safety Backing Tape over the entire rear surface of the mirror. The EH66 hinge accommodates impressive panel sizes: for 5/16″ (8 mm) glass, side wings can measure up to 51-3/16″ (1.30 m) high by 17-3/4″ (450 mm) wide, while the center panel can reach 51-3/16″ (1.30 m) high by 31-1/2″ (800 mm) wide. Likewise, for 1/4″ (6 mm) glass, the wings expand to 59-1/16″ (1.50 m) high by 19-1/16″ (485 mm) wide, and the center can measure 59-1/16″ (1.50 m) high by 35-7/16″ (900 mm) wide. Constructed from durable brass with a polished chrome finish, the EH66 hinge combines functionality with elegance, making it an ideal choice for both building professionals and discerning homeowners.

Chrome Frameless Triple Mirror Hinge

• For 1/4″ to 5/16″ (6 to 8 mm) Glass
• Secures Mirror with Plastic Tipped Set Screws
• Package Contains Four Hinges – Enough for One Complete Triple Frame

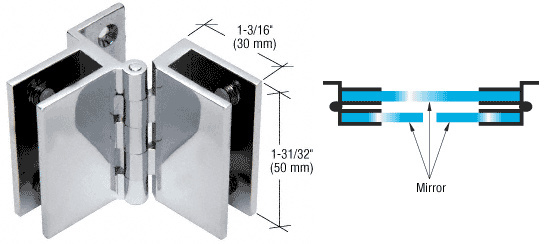

CRL’s Frameless Triple Mirror Hinge is a compact general purpose glass-to-glass hinge with the set screws on the back. This hinge was designed to make frameless triple mirrors that are mounted to the wall. Plastic tipped set screws secure the glass. Minimum order is one package of four Hinges.
NOTE: CRL strongly recommends using Cat. No. 2MT Safety Backing Tape over the entire rear surface of all mirror installed into these hinges.
Maximum Panel Size to be Used with This Hinge:
5/16″ (8 mm) Glass:

Attributes

Ship via: Can Ship UPS

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Finish/ Color:: Polished Chrome

Glazing Thickness: 1/4 in. To 5/16 in. (6mm To 8 mm)

Height: 1-31/32 in. (50 mm)

Material: Brass

Pack Quantity: 4

Shipping Limitations: None

Width: 1-3/16 in. (30.2 mm)
