CRL EG12SC Satin Chrome Edge Grip for ” Material

CRL EG12SC Satin Chrome Edge Grip for ” Material

C.R. Laurence EG12SC Satin Chrome Edge Grip for 1/2″ Material Thickness offers a sleek and efficient solution for attaching decorative panels or signage without compromising the integrity of the material. Designed for 1/2″ (12.7 mm) thick glass or panel materials, this edge grip provides a secure hold without the need for drilling, allowing for quick installation and easy adjustments. With a diameter of 1-1/4″ (32 mm) and a height of 1-3/16″ (30.2 mm), the EG12SC is crafted from durable brass and finished in elegant satin chrome, ensuring both style and strength. The edge grip can be utilized on corners and edges of panels, making it versatile for various applications. It comes supplied with an EGCS socket head cap screw for secure attachment. For optimal support, it is advisable to use multiple edge grips at the top, bottom, and sides of heavier panels. To install directly onto a substrate, utilize the recommended No. 12 by 1-1/2″ pan head Phillips sheet metal screw. Please note that these edge grips are specifically designed for rectangular or square panels. Enhance your architectural projects with the reliability and contemporary aesthetic of the C.R. Laurence EG12SC Edge Grip.

Satin Chrome Edge Grip for 1/2″ Material

• For 1/2″ (12.7 mm) Material Thickness
• No Drilling Required in Glass or Panel Materials
• Can be Used on Corners and Edges of Panels
• Supplied with a EGCS Socket Head Cap Screw

CRL’s Edge Grips provide additional flexibility in attaching decorative panels or signage to walls or substrates. The Edge Grip allows material to be held to the wall without drilling holes in the face material. This allows for quick installation or adjustment of panels mounted in Edge Grips. 1-1/4″ (32 mm) diameter Edge Grips are available in brass, chrome, satin chrome, 316 brushed stainless, and gun metal finishes, and are compatible with CRL standoffs. It is recommended that CRL Edge Grips be utilized at the top, bottom and sides of heavier panels for maximum support.
NOTE: To attach the Edge Grip directly to a substrate, use Cat. No. 12X112PHPSMS, a No. 12 by 1-1/2″ Pan Head Phillips Sheet Metal Screw. It is recommended that screws be installed directly into wood blocking. Edge Grips are only recommended for installation of rectangular or square panels.

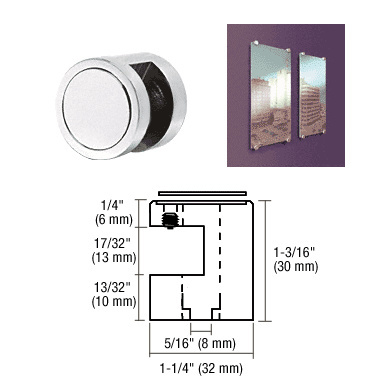

Edge Grip Specs:
Diameter: 1-1/4″ (32 mm)
EG14BS Length: 1-1/16″ (27 mm)
EG38 Length: 1-1/8″ (28.6 mm)
EG12 Length: 1-3/16″ (30.1 mm)
Replacement Cover Disks are available if you need to repair or replace one.
Product Warning:
We recommend CRL Edge Grips be used at the top, bottom, and sides of heavier panels for maximum support.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Ship via: Can Ship UPS

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Diameter: 1-1/4 in. (31.8 mm)

Finish/ Color:: Satin Chrome

Glazing Thickness: 1/2 in. (12 mm)

Height: 1-3/16 in. (30.2 mm)

Material: Brass

Shipping Limitations: None
