CRL DL970FA Aluminum Rim Fire Exit Device Instructions

CRL DL970FA Aluminum Rim Fire Exit Device Instructions

C.R. Laurence DL970FA Aluminum Rim Fire Exit Device is engineered to enhance safety and accessibility in commercial and residential spaces. Designed for use with 30″ to 36″ wide wood or metal doors, this device offers a robust solution for emergency exits. Its UL listing ensures compliance with stringent safety standards, providing peace of mind that it will perform reliably in critical situations. With a three-hour fire rating, the DL970FA is made to withstand significant heat, making it a crucial component for fire safety in buildings. The device features a non-handed design, allowing for easy installation on either side of the door, and the panic base can be field sized to accommodate doors as narrow as 30″ (762 mm). An active lever trim option is available, adding functionality without compromising aesthetics. The device is crafted from durable steel and finished in aluminum, ensuring long-lasting performance even in high-traffic environments. It requires a minimum door stile width of 4-1/4″ (108 mm) and is suitable for 1-3/4″ thick doors. C.R. Laurence’s commitment to quality and safety makes the DL970FA an excellent choice for any project requiring reliable exit hardware.

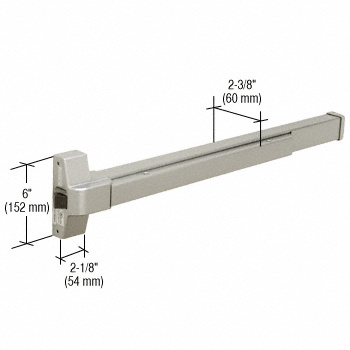

Aluminum Rim Fire Exit Device

• For Use with 30″ to 36″ Wide Wood or Metal Doors
• UL Listed
• Two Finishes Available
• Non-Handed

Our CRL Push-Pad Rim Fire Exit Device is intended for use with 1-3/4″ thick wood or metal doors. This device has a three hour fire rating and is UL listed. Minimum required door stile width is 4-1/4″ (108 mm). Panic base can be field sized to fit doors as narrow as 30″ (762 mm). Panic is field reversible. Active Lever Trim is available.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Ship via: Can Ship UPS

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Door Height: 2.375

Finish/ Color:: Aluminum

Fire Rating Hour: 3

Material: Steel

Shipping Limitations: None
