CRL DL631BL Black Adjustable Shelf Clamp

CRL DL631BL Black Adjustable Shelf Clamp

C.R. Laurence DL631BL Black Adjustable Shelf Clamp offers a sleek and versatile solution for supporting glass or wood shelves ranging from 1/8″ to 15/16″ (3 to 24 mm) thick. Designed to accommodate shelf depths of up to 10″ (254 mm), these clamps ensure stability while enhancing the aesthetic of any space. Ideal for monolithic tempered glass applications, each clamp is secured with a single mounting screw, which is included, and features an adjustment screw to easily adapt to various shelf thicknesses. Constructed from durable zinc, the DL631BL clamps are finished in an elegant gloss black that complements modern interiors. Each pair can hold a maximum weight of 44 lbs. (20 kg) when properly installed, making them suitable for a variety of shelving needs. The package includes essential components such as an adjusting screw, mounting screw, and foam gasket, ensuring a straightforward installation process. With no glass fabrication required, these clamps streamline the installation while providing a sturdy, reliable support system for your shelving. Whether you’re a building professional or a knowledgeable homeowner, the C.R. Laurence DL631BL Adjustable Shelf Clamp combines functionality with style, making it an essential addition to your architectural hardware collection.

Black Adjustable Shelf Clamp

• For Glass or Wood Shelves 1/8″ to 15/16″ (3 to 24 mm) Thick
• Work with Shelves Up to 10″ (254 mm) Protrusion From Wall
• Use Monolithic Tempered Glass

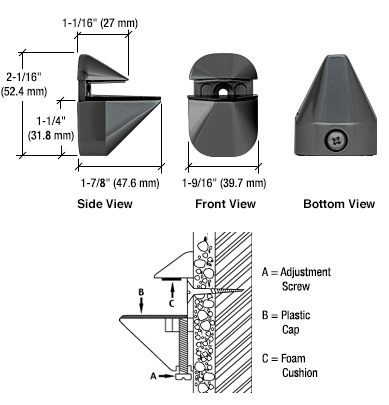

CRL Regular Size Adjustable Shelf Clamps are designed to work with 1/8″ to 15/16″ (3 to 24 mm) thick glass or wood shelves up to 10″ (254 mm) deep.
The Clamps are secured with one screw (included) to the substrate. An adjustment screw is also included to accommodate various shelf glass thicknesses. Maximum recommended weight per pair of DL631 Regular Clamps when correctly installed is 44 pounds (20 kg).
NOTE: Maximum recommended weight for two each of DL661 Heavy-Duty Clamps correctly installed is 50 pounds (23 kg).
SPECIFICATIONS:
Material: Zinc
Thickness Range: 1/8″ to 15/16″ (3 to 24 mm)
No Glass Fabrication Required
Includes: Adjusting Screw, Mounting Screw, Foam Gasket
Maximum Shelf Depth and Weight: 10″ (254 mm), 44 lbs. (20 kg)

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Ship via: Can Ship UPS

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Finish/ Color:: Gloss Black

Glazing Thickness: 1/8 To 15/16

Height: 2-1/16

Material: Zinc

Maximum Shelf Depth: 10

Pack Quantity: 2

Shipping Limitations: None

Weight Capacity: 44

Width: 1-9/16
