CRL C0M90SCH Polished Chrome Como Series Wall Bracket

CRL C0M90SCH Polished Chrome Como Series Wall Bracket

C.R. Laurence C0M90SCH Polished Chrome Como Series Wall Mount Bracket offers a sophisticated solution for securely mounting glass panels. Designed for 5/16″ (8 mm) to 3/8″ (10 mm) thick monolithic tempered glass, this bracket is ideal for various applications, including the CRL All Glass Restroom Partition System. Its elegant polished chrome finish adds a touch of modernity to any space, making it an attractive choice for both commercial and residential projects. The Como Series Wall Mount Bracket is constructed from solid brass, ensuring durability and longevity. Its snap-on covers effectively conceal screws for a clean and streamlined appearance. This bracket can also serve as a horizontal shelf support, further enhancing its versatility. Installation is straightforward, requiring two 3/4″ (19 mm) holes per panel, with gaskets and mounting screws included for convenience. With dimensions of 3-1/8 in. (79 mm) in height and widths of 1-13/16 in. (46 mm) for the sidelites and 1-7/8 in. (48 mm) for the wall portion, it is designed to fit seamlessly into various configurations. Whether you’re looking to create a chic bathroom space or a sophisticated glass partition, the C.R. Laurence Como Series Wall Mount Bracket is an exceptional choice for discerning builders and homeowners alike.

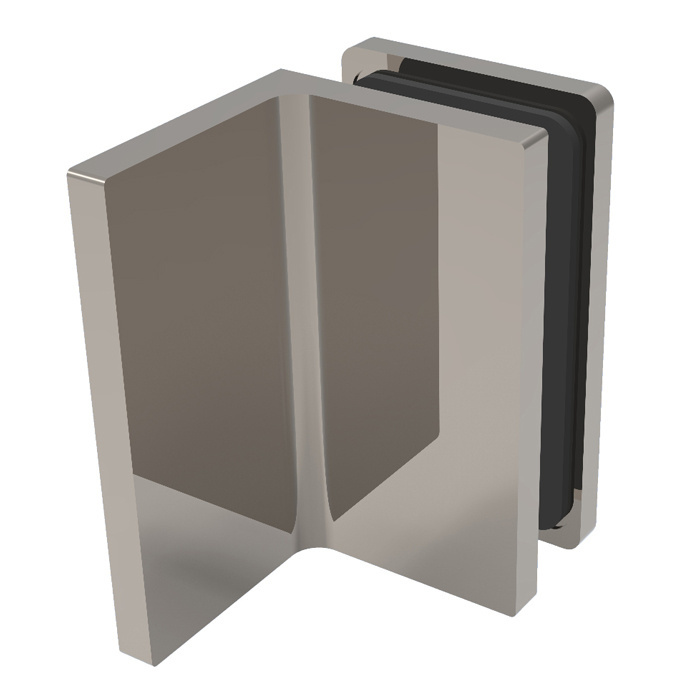

Polished Chrome Como Series Wall Mount Bracket

• For 5/16″ to 3/8″ (8 to 10 mm) Glass
• Can Be Used With the CRL All Glass Restroom Partition System
• Use Monolithic Tempered Glass

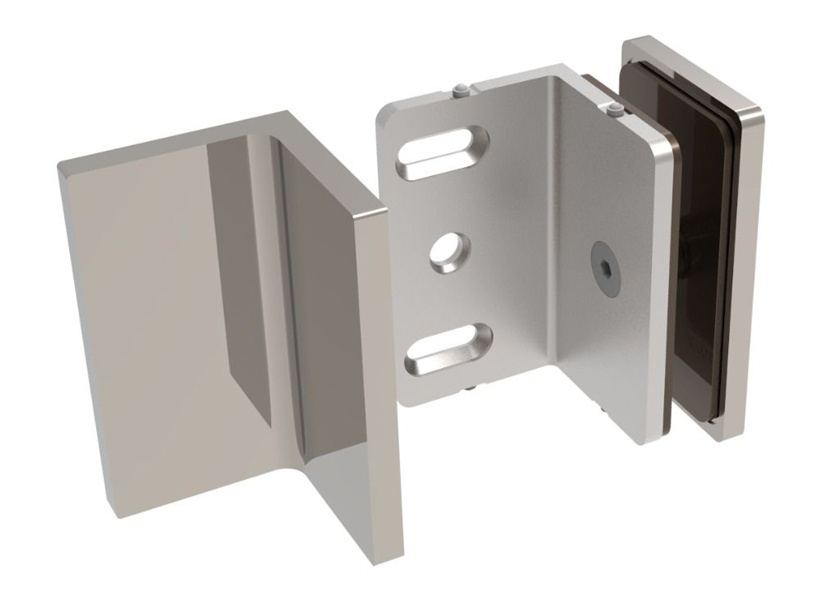

• Snap-on Covers Conceal Screws

The CRL COMO Series Wall Mount Bracket are designed for 5/16″ (8 mm) to 3/8″ (10 mm) thick glass. Can also be used as a horizontal shelf bracket. They match the configuration of many of our most popular hinge and clamp series. They feature square corners and edges in several decorator finishes and are constructed of solid brass. A truly stylish way to attach glass to walls. Drawings, templates and custom finishes are available upon request.

SPECIFICATIONS:

Attributes

Ship via: Can Ship UPS

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Design Style: Concealed/Premium

Enclosure Type: Corner, Niche, Bathtub, Tailor Made Solutions

Finish/ Color:: Polished Chrome

Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)

Height: 3-1/8 in. (79 mm)

Material: Brass

Mounting Type: Wall Mount

Opening Style: Swing(side)

Series: Como

Shipping Limitations: None

Width – Sidelite Portion: 1-13/16 in. (46 mm)

Width – Wall Portion: 1-7/8 in. (48 mm)
