CRL BP5BRZ Matte Bronze 5″ Square Base Plate

CRL BP5BRZ Matte Bronze 5″ Square Base Plate

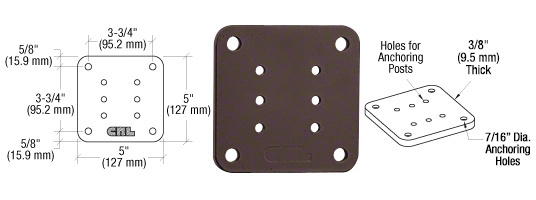

C.R. Laurence BP5BRZ Matte Bronze 5″ x 5″ Square Base Plate is a versatile and robust solution for securing 2-3/8″ (60 mm) square aluminum posts. Designed for compatibility with all standard railings, this base plate features a sleek matte bronze finish that complements a variety of architectural styles.Constructed from durable aluminum, the BP5BRZ measures 5 inches in both length and width, with a thickness of 3/8 inch, making it ideal for both residential and commercial applications. The innovative offset design allows vertical posts to attach directly to one side of the base plate, streamlining the installation process. Each unit includes a moisture barrier gasket (Cat. No. BPG1BL), ensuring a secure fit and added protection against the elements. Installation is straightforward, as the base plate can be easily screwed into vertical post raceways and anchored to the substrate using CRL’s concrete anchors or lag bolts. For a polished finish, consider adding stainless steel washers (WSHR1) and color match bolt cover buttons (BTN1).Please note that all ARS/AWS products are painted to order and are non-refundable or returnable. The BP5BRZ is a reliable choice for building professionals seeking quality and aesthetic appeal in their railing systems.

Matte Bronze 5″ x 5″ Square Base Plate

• Seven Standard Colors, Plus Unfinished Chromate Available for Standard and 45 Degree Post
• For Use with All Standard Railings
• For 2-3/8″ (60 mm) Square Aluminum Posts

CRL Standard Square Base Plates screw into Vertical Post raceways. They are countersunk to accept four Cat. No. BPS112 Base Plate Screws, then attached to the substrate with our Concrete Anchors or Lag Bolts. Use Stainless Steel Washers (WSHR1) and Color Match Bolt Cover Buttons (BTN1) to add a finished look. The BP05 Offset Base Plate design allows vertical posts to attach to one side of the Base Plate. One each Moisture Barrier Gasket Cat. No. BPG1BL is included with each Base Plate.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable or returnable.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Ship via: Can Ship UPS

Base Plate Length: 5 in. (127 mm)

Base Plate Thickness: 3/8 in. (10 mm)

Base Plate Width: 5 in. (127 mm)

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Finish/ Color:: Matte Bronze

Material: Aluminum

Shipping Limitations: None
