CRL BP05CA Clear Anodized 5″ x 5″ Offset Base Plate

CRL BP05CA Clear Anodized 5″ x 5″ Offset Base Plate

C.R. Laurence BP05CA Clear Anodized 5″ x 5″ Offset Base Plate offers a reliable solution for securely mounting vertical posts in various railing applications. This base plate is specifically designed for 2-3/8″ (60 mm) square aluminum posts and is compatible with all standard railings, making it a versatile choice for both residential and commercial projects. Crafted from durable aluminum and finished in a sleek clear anodized coating, the BP05CA not only provides strength but also enhances the aesthetic appeal of your installations. Available in seven standard colors, along with an unfinished chromate option for customization, this product allows for seamless integration into your design scheme. Installation is straightforward, as the base plate screws into vertical post raceways and features countersunk holes that accommodate four Cat. No. BPS112 Base Plate Screws. For added stability, it can be secured to the substrate using CRL Concrete Anchors or Lag Bolts, complemented by stainless steel washers (WSHR1) and color match bolt cover buttons (BTN1) for a polished finish. Each base plate includes a moisture barrier gasket (Cat. No. BPG1BL) to ensure long-lasting performance. With no shipping limitations, your project can proceed without delay.

Clear Anodized 5″ x 5″ Offset Base Plate

• Seven Standard Colors, Plus Unfinished Chromate Available for Standard and 45 Degree Post
• For Use with All Standard Railings
• For 2-3/8″ (60 mm) Square Aluminum Posts

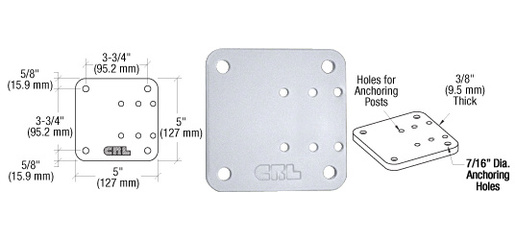

CRL Standard Square Base Plates screw into Vertical Post raceways. They are countersunk to accept four Cat. No. BPS112 Base Plate Screws, then attached to the substrate with our Concrete Anchors or Lag Bolts. Use Stainless Steel Washers (WSHR1) and Color Match Bolt Cover Buttons (BTN1) to add a finished look. The BP05 Offset Base Plate design allows vertical posts to attach to one side of the Base Plate. One each Moisture Barrier Gasket Cat. No. BPG1BL is included with each Base Plate.
All ARS/AWS products are painted to order and are non-refundable or returnable.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Ship via: Can Ship UPS

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Finish/ Color:: Clear Anodized

Material: Aluminum

Shipping Limitations: None
