CRL 11283A Satin Anodized 83″ Roton 112 Concealed Leaf Continuous Hinge

CRL 11283A Satin Anodized 83″ Roton 112 Concealed Leaf Continuous Hinge

C.R. Laurence 11283A Satin Anodized 83″ Roton 112 Series Concealed Leaf Continuous Hinge offers a seamless and robust solution for door applications. Designed for standard duty, this hinge accommodates doors weighing up to 200 lbs. (90 kg), making it ideal for various residential and commercial settings. The hinge features a straight hole pattern for straightforward installation and is available in both satin anodized and dark bronze anodized finishes, allowing you to choose the perfect match for your decor. Constructed from durable aluminum, the hinge is engineered with load-bearing blocks positioned every 5-1/8″ (130 mm) to ensure reliable performance. Measuring 83″ (2.1 m) in length, this continuous hinge is stocked for convenience and comes with a pack of installation screws, simplifying assembly. For those requiring enhanced load capacity, heavy-duty options are also available, supporting doors weighing up to 600 lbs. (272 kg). Whether you’re enhancing security or improving accessibility, the C.R. Laurence Roton 112 Series hinge delivers exceptional strength and aesthetic appeal. As a versatile choice for various applications, it’s a must-have for building professionals and discerning homeowners alike.

Satin Anodized 83″ Roton 112 Series Concealed Leaf Continuous Hinge

• Standard Duty Hinges for Doors Weighing Up to 200 Lbs. (90 kg)
• Straight Hole Pattern
• Available in Satin Anodized and Dark Bronze Anodized Finishes
• Heavy-Duty Hinges for Doors Weighing Up to 600 Lbs. (272 kg)

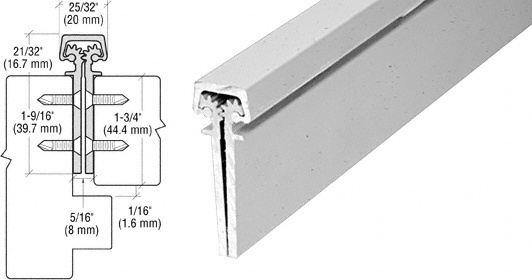

These CRL Roton Concealed Leaf Continuous Hinges for 1-3/8″ (35 mm) doors have load bearing blocks every 5-1/8″ (130 mm) on the Standard Duty Hinge, and every 2-9/16″ (65 mm) on the Heavy-Duty Hinge. They are available in satin anodized and dark bronze anodized finishes, and stocked in 83″ (2.1 m) lengths. A pack of installation screws is included with each hinge. Packs of replacement screws are also available separately.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Ship via: Can Ship UPS

Brand: Roton

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Finish/ Color:: Satin Anodized

Includes: Installations Screws

Length: 83 in. (2108.2 mm)

Material: Aluminum

Maximum Door Weight: 200 lbs. (90.7 kg)

Replacement Screw Pack: 61362SA

Series: Roton 112

Shipping Limitations: None

Width: 25/32 in. (19.8 mm)
