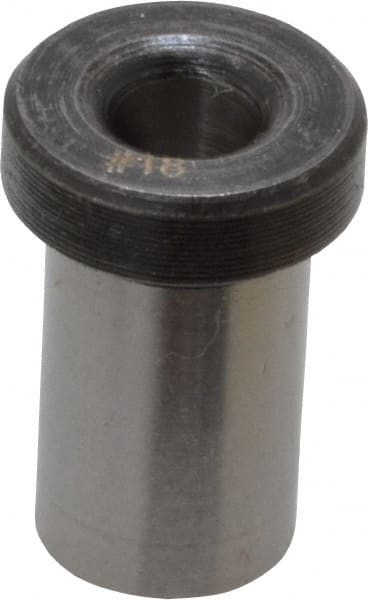

Boneham – Type H, No. 18 Inside Diam, Head, Press Fit Drill Bushing
Original price was: $11.21.$3.36Current price is: $3.36.
Features and Benefits
Head Press Fit
| Product Specifications | |
|---|---|
| Bushing Industry Code | H |
| Inside Diameter (Wire) | #18 |
| Inside Diameter (Decimal Inch) | 0.1695 |
| Body Outside Diameter (Inch) | 5/16 |
| Length Under Head (Inch) | 1/2 |
| Renewable Bushing | No |
| Installation Method | Press-Fit |
| Head or Headless | Head |
| Head Outside Diameter (Inch) | 27/64 |
| Head Height (Inch) | 1/8 |
| Bushing Material | Steel |
| Counterbored | No |
| Inside Diameter Tolerance (Decimal Inch) | +0.0001 to +0.0004 |
