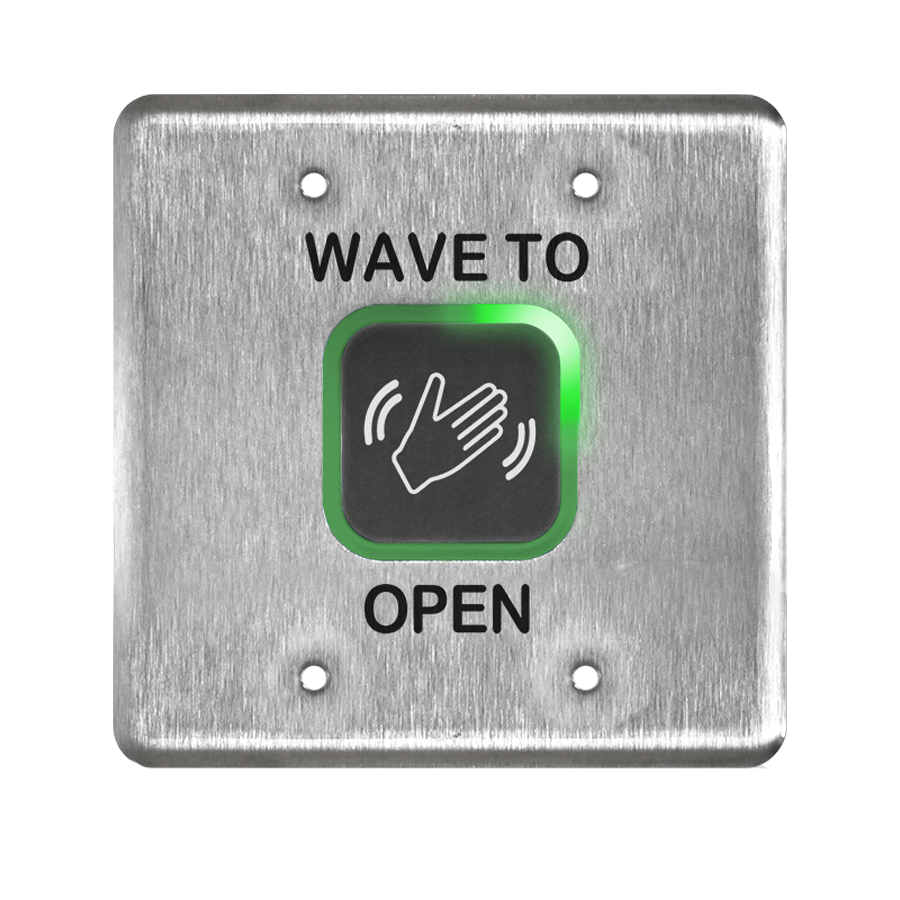

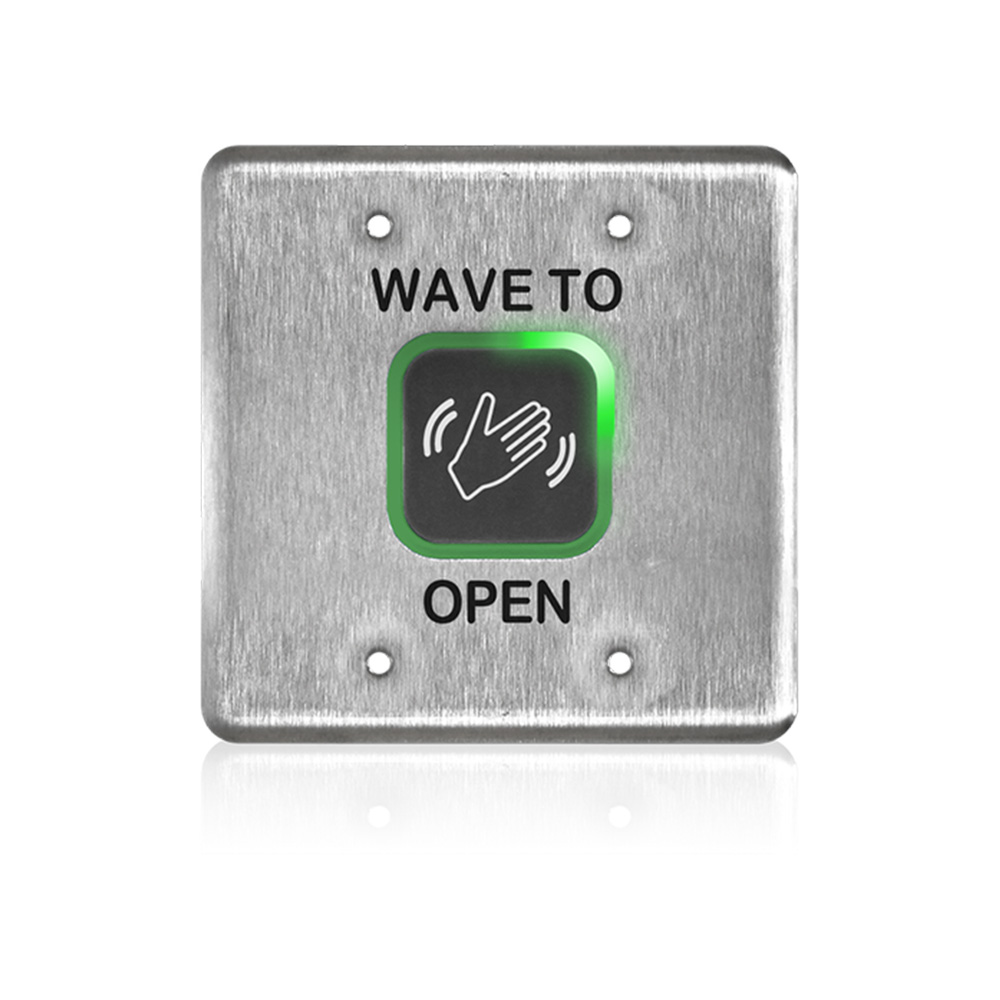

BEA 10MS41-D Touchless Actuators

BEA 10MS41-D Touchless Actuators
BEA’s MAGIC SWITCH® Family provides a highly accessible and germ-free door activation without physical contact. Reduce touchpoints in fast-paced environments that depend on sanitation like healthcare, retail, industrial and commercial settings. Using microwave technology, BEA’s MS41 produces a detection field with a reliable and consistent transmission in interior and exterior applications. Capable of detecting a moving hand, cart or wheelchair. Plus, an adjustable hold time offers flexibility to meet ANSI standards. The MS41 features rounded corners and a customizable illuminated ring with audible signaling. The durable design suits sterile, wash-down applications such as surgical, wash-down, clean room and pharmaceutical environments.

• IP55 Rated Enclosure Capable of Use in Industrial and Extreme Washdown Environments
• Adjustable Sensing Zone from 4 to 24 Inches (Timed or Toggle)
• Configurable Output Hold Time of ½ to 30 Seconds Allowing Unique, User-Defined Device Placement
• Stainless Steel Faceplate Increases Durability and Protection from Daily Cleaning
• Touchless Actuator with Adjustable Range and Relay Hold Time

Attributes

Ship via: Can Ship UPS

Alternate Codes: 10MS11D, BEA10MS11D, BEA10MS41 D, BEA10MS41-D, BEA10MS41D

Category: Access Control, Door Closers, Power Operators, Push Plates, Wireless

Delay Duration: Selectable

Environment: Weatherproof

Finish: 630/US32D

Finish Description: Satin Stainless Steel

Inputs: Microwave Doppler Radar

Limited Warranty: 3 Years

Mounting Plate Size: 2 Gang

Operating Voltages: 12/24 VDC/AC

Range: 4-24 In. (Adjustable)

Relay Action: Multi Function

Relay Form: Switch-over Contact (Voltage Free)

Sensor Technology: Microwave

Series: BEA Activation Plates

Subtype: Touchless Actuators

Timer Duration: 0.5 – 30 s

Type: Sensors, Switches, Relays, Timers

Upc: 400002109031
