BDA140301

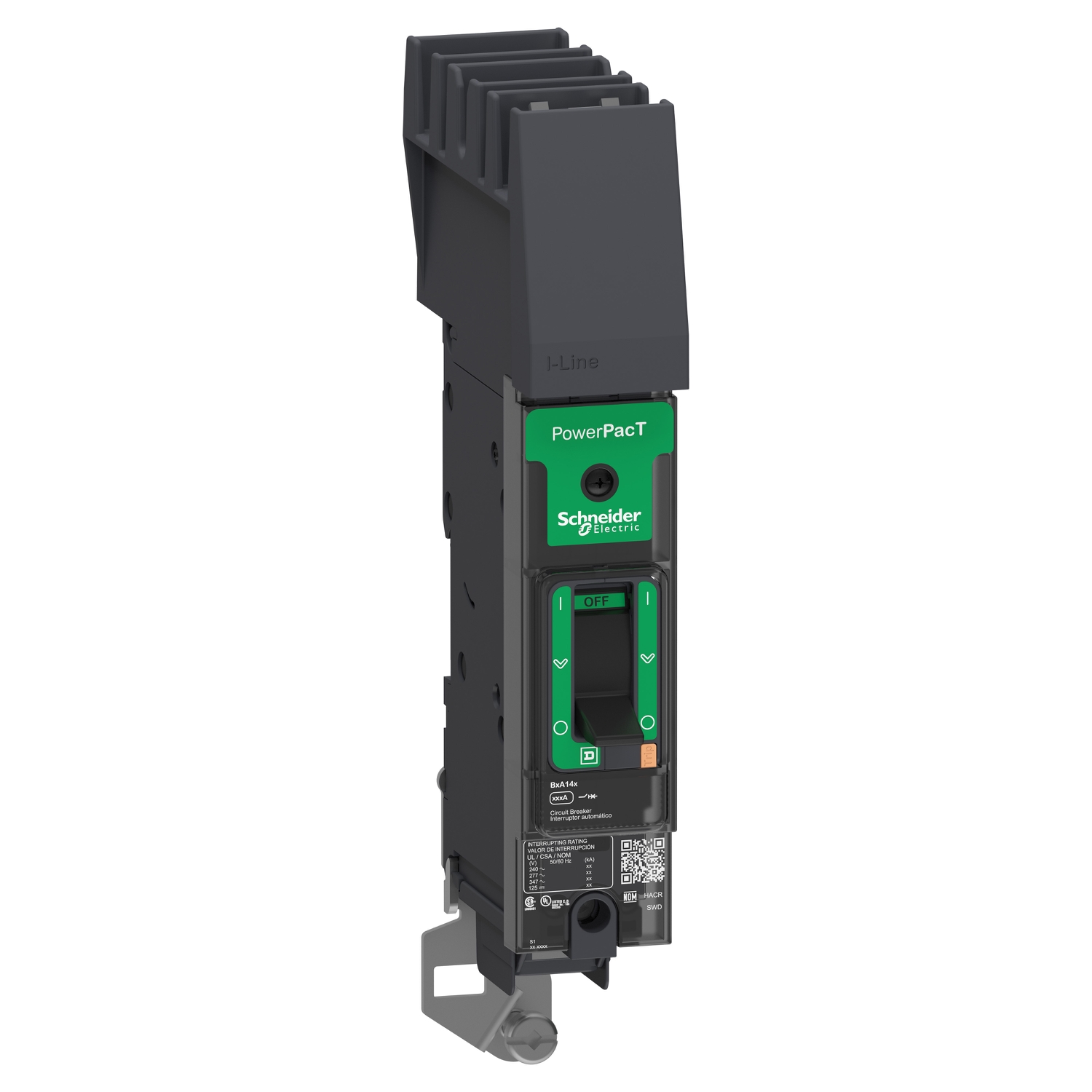

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 480Y/277VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 30A, 1 pole, circuit breaker has a breaking capacity of 18kA at 480Y/277VAC. This circuit breaker has a continuous current rating of 80% with an A phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

• BDA140301
• Square D Circuit breaker,
• PowerPacT B series,
• 30 Amp,
• 1 pole,
• 480Y/277VAC,
• 18kAIC rating,
• I-Line, thermal magnetic,
• 80%, Continuous current rating
• Category A
• 25 kA 208Y/120 V AC 50/60 Hz UL 489
• 25 kA 240 V AC 50/60 Hz UL 489
• 18 kA 480Y/277 V AC 50/60 Hz UL 489
• 10 kA 125 V DC 50/60 Hz UL 489
• 14 kA 600/347 V AC 50/60 Hz UL 489
