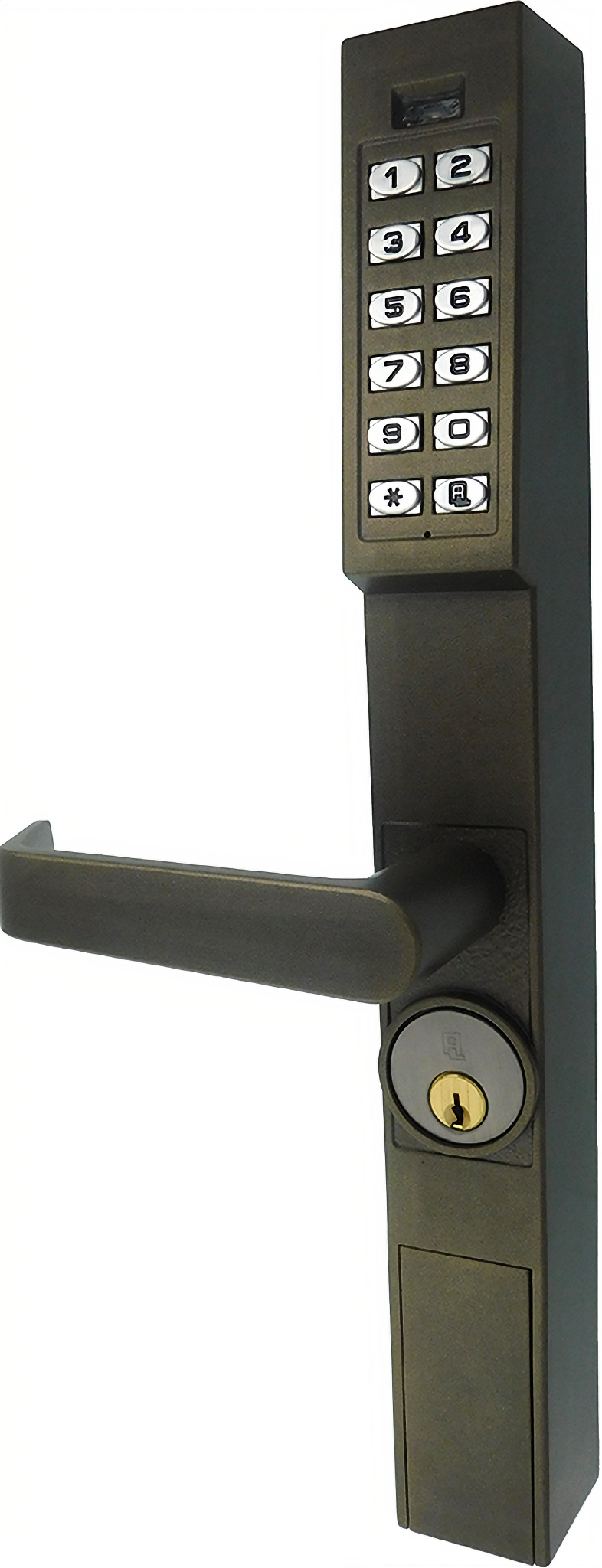

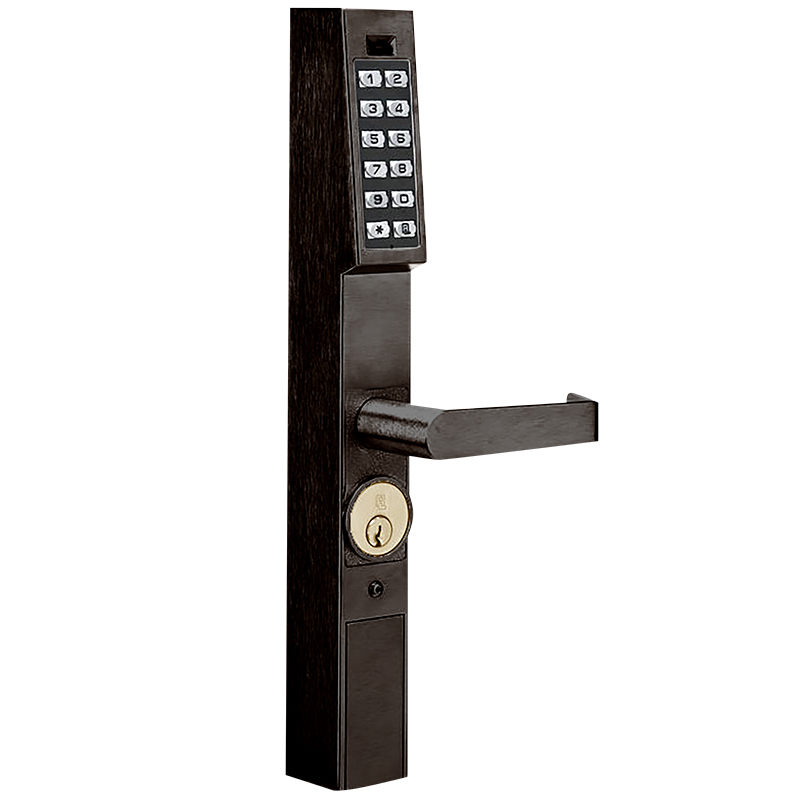

Alarm Lock DL1200/10B1 Trilogy Narrow Stile Digital Lever Lock – Oil Rubbed Bronze Finish

Alarm Lock DL1200/10B1 Trilogy Narrow Stile Digital Lever Lock – Oil Rubbed Bronze Finish

Alarm Lock DL120010B1 Trilogy Narrow Stile Digital Lever Lock in Oil Rubbed Bronze Finish offers a sophisticated solution for securing commercial spaces with style and convenience. Designed with the modern user in mind, this digital lever lock supports up to 100 customizable 3-6 digit PIN user codes, allowing seamless access management for various building types. Its fingertip programmability ensures quick setup, while the battery operation guarantees reliable performance for up to 100,000 cycles. With its fully reversible design, the Trilogy lock fits various door configurations, making installation straightforward. It accommodates door thicknesses of 1-3/4″ and features a 1-1/4″ key override for added security options. The cylindrical chassis and 1-1/4″ bore with additional through-bolt holes cater to a range of installation requirements, ensuring versatility across applications.Finished in an elegant oil rubbed bronze, this lock not only enhances security but also complements the aesthetics of any entryway. Backed by a limited 2-year warranty, the Alarm Lock DL120010B1 promises durability and peace of mind. Whether for a single door or an entire facility, this lock delivers an effective, cost-efficient solution for electronic access control.

Trilogy Narrow Stile Digital Lever Lock Oil Rubbed Bronze Finish

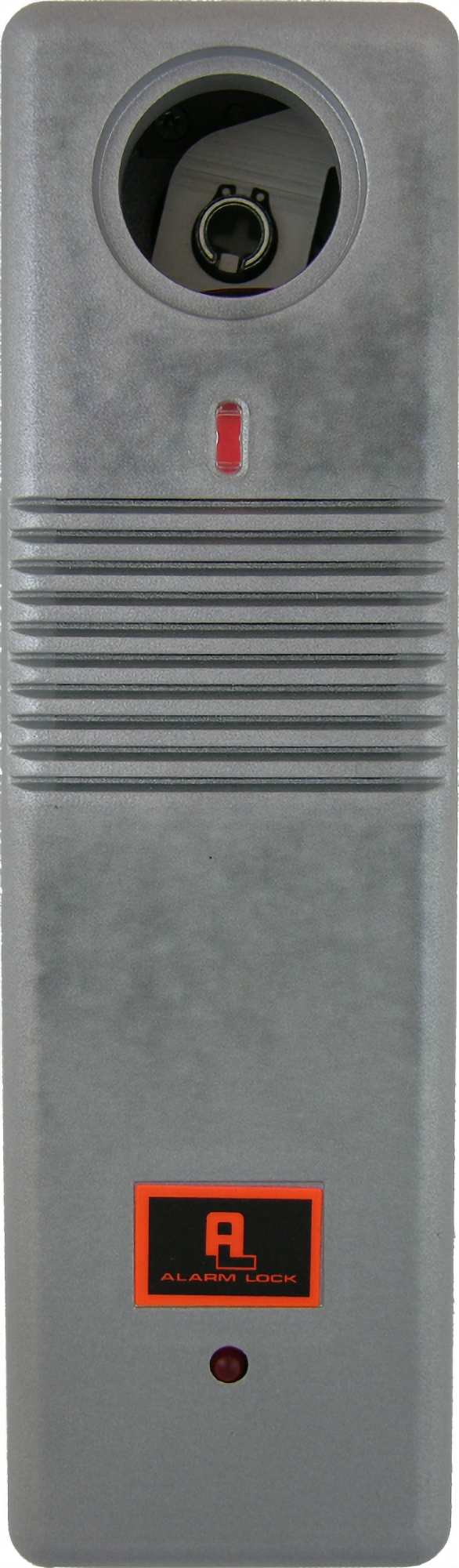

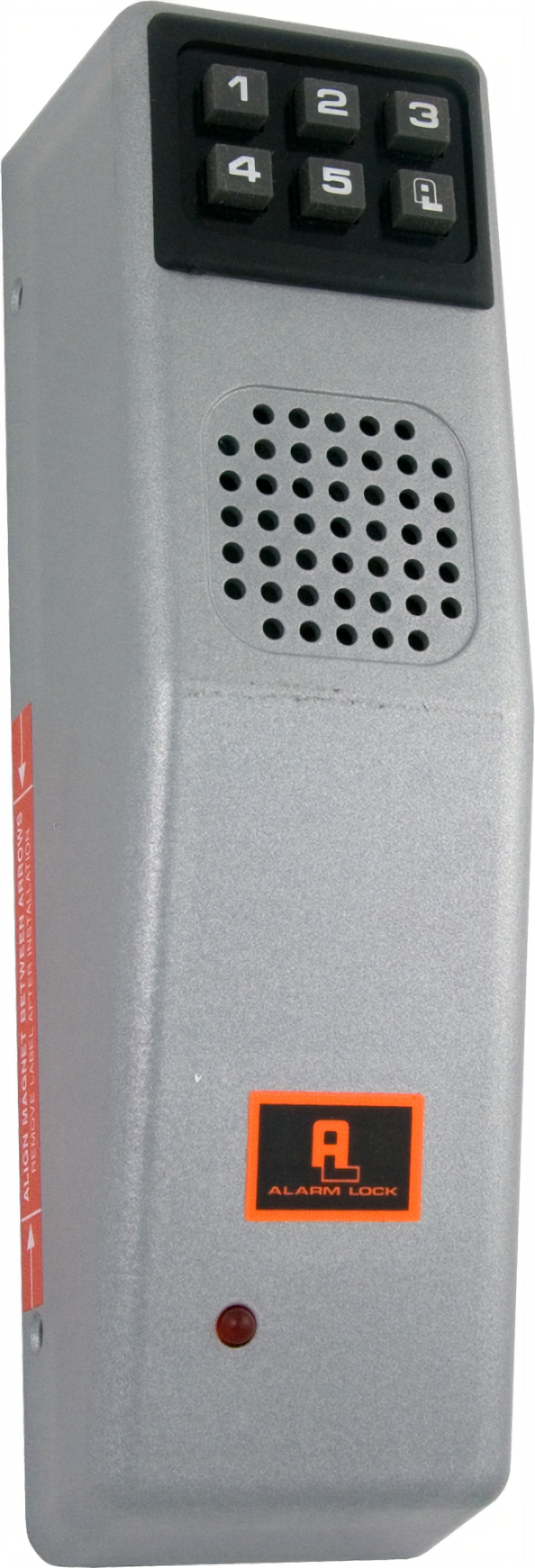

For four decades Alarm Lock Systems has built a strong reputation as a respected leader in the design and manufacture of electronic and mechanical access and egress control keyless entry products. Originally known worldwide for its superior Sirenlock panic exit and delayed egress exit alarms in full-door and clapper styles, Alarm Lock has nearly eclipsed its original product success with that of another — the incredibly-popular, innovative Trilogy line of standalone access keyless locks that enable security professionals securing buildings of all kinds to more cost-effectively add dependable wireless access control a door at a time with a field-proven access solution and with a consistent model for every door type in a facility.

• Aluminum door retrofit outside trim for Adams Rite 1850, 1950, 4710, 4070, 4730, 4900 Series and MS1850S and MS1950S Series latch locks
• Add keyless convenience to mechanical latch locks from Trilogy’s all-metal, vandal-resistant 12-button keypad and/or automatic timed-scheduled locking/unlocking and audit trail with 1300 Series
• DL1200 supports 100 3-6 digit PIN user codes, fingertip programmable
• DL1300 (and Prox PDL1300, right) support 2000 users, PC programming/reporting and features 40,000 event audit trail by user and 500 event schedule/real time clock (e.g. lock/unlock by time)
• Weatherproof -31 deg. to +151 deg.F (-35 deg. to +66 deg.C)
• Long-life, battery- operated for 100,000 and 80,000 cycles respectively, 2 lithium 3V batteries, supplied; low battery alert
• Compact styling, 14-3/8″H x 1-5/8″D x 1-3/4″W
• Key override mortise cylinder, 1-1/4″ supplied. (Supports 1-1/8″, 1-1/4″ and 1-3/8″). Also interchangeable cores supported (Corbin/Russwin, Yale, Schlage, Medeco.)
• Backsets 31/32″, 1-1/8″ and 1-1/2″ ; Stile thickness 1-3/4″
• Non-handed; fully field-reversible
• Four finishes US26D satin chrome, US10B duronodic, MS metallic silver and MB metallic bronze
• 100 3-6 Digit PIN User Codes
• Finger Tip Programmable
• Battery Operated for 100,000 Cycles
• 1-1/4″ Key Override
• Fully Reversible

Attributes

Ship via: Can Ship UPS

Access Type: Electronic

Alternate Codes: 144008, ALADL120010B1, ALADL1200Oil Rubbed Bronze1, DL1200/10B1, DL1200/Oil Rubbed Bronze1, DL120010B1, DL1200Oil Rubbed Bronze1

Application: CM EL

Backset: 1-1/2″, 1-1/8″, 1″

Battery Type: Lithium

Category: Commercial Electronic Devices

Chassis Type: Cylindrical Chassis

Clazz: AL

Code Length: 3-6

Color: Oil Rubbed Bronze

Communication Technology: Stand Alone

Compatibility: Adams Rite 4710, Adams Rite 4730, Adams Rite 4900

Country of Origin: Dominican_republic

Crossbore Size: 1-1/4″ Bore with additional through-bolt holes

Cylinder Type: 6-Pin Cylinder, Mortise

Design: Narrow Stile

Dimension: 1-5/8″ x 1-3/4″ x 14-3/8″

Door Application: Access Management

Door Bore Prep: Latch Lockset 1.25in Prep

Door Range: 1-3/4″

Door Thickness: 1-3/4″

Feedback: Audible Low Battery Alert, Audible & Visible Entry Indicator

Finish: Oil Rubbed Bronze

Finish Code: US10B

Finish Color: Oil Rubbed Bronze

Finish Description: Dark Oxidized Satin Bronze Oil Rubbed

Fire Rated: No

Function: Entry

Grade: Grade 1 Commercial

Handing: Non-Handed

Hazardous Material: NO

Item Class Description: Trilogy Narrow Stile Digital Lever Lock

Item Type Keyword: Digital

Keypad Type: Electronic

Keyway: Schlage C

Knob/ Lever Style: Lever

Latch Faceplate Dimension: 1-1/8″ x 2-1/4″

Latchbolt Type: Deadlatch

Lever Design: Standard

Limited Warranty: Limited 2 Year Warranty

Lock Category: Narrow Stile Locks

Lock Platform: Narrow Stile Trim Latch

Manufacturer: Alarm Lock Systems Inc

Manufacturer Warranty: Limited 2 Year Warranty

Material: Zinc Alloy

No Of Inners: 1

Number Of Inners: 1

Number Of Pins: 6 pin

Order_ Qty: 1

Power: Hardwired

Power Supply: typ.on 2 lithium 3V batteries

Power Supply Type: Battery

Product Dimension: 1-3/4″ x 14-3/8″

Product Type Used With: Electric Lockset

Programmer: Optional

Prop65: N

Proximity Format: Keypad

Reader Technology: Keypad Only

Series: DL Series

Series Name: Trilogy

Software: Optional

Subcategory: Commercial Electronic Locksets

Subtype: Electronic Locksets

Trim Option: Lever Trim

Type: Electronics

Users: 100

Voltage: 2 3V

Weatherproof: Yes
